2KG Load 6 DOF Robotic Arm With Stepper Motor Industrial Desktop AR3 AR4 Mechanical Arm for AI Project Training ROS Robot

Description

Youfang Smart is smarter, tech, and healthier

We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This programmable robotic arm is a new, very intelligent teaching programmable roboticarm designed by our institute, but also the enlightenment of children and engineers to learn education, we will release more technology, education, health new products from time to time, can be used as gifts, adult learning programmable board.I believe you will like our robot arm.

By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.

2KG Load 6 DOF Robotic Arm With Stepper Motor Industrial Desktop AR3 AR4 Mechanical Arm for AI Project Training ROS Robot

Title:Mechanical arm cost-effective scientific research AR4 six-axis robot ROSmoveit open source AI Google training college training

Feature:
AR3’s structure has been improved, compared with AR4. It is not easy to damage its contact switch. The arm’s software is more convenient to use, and its embedded board has better performance.

AR3 Version Configuration:

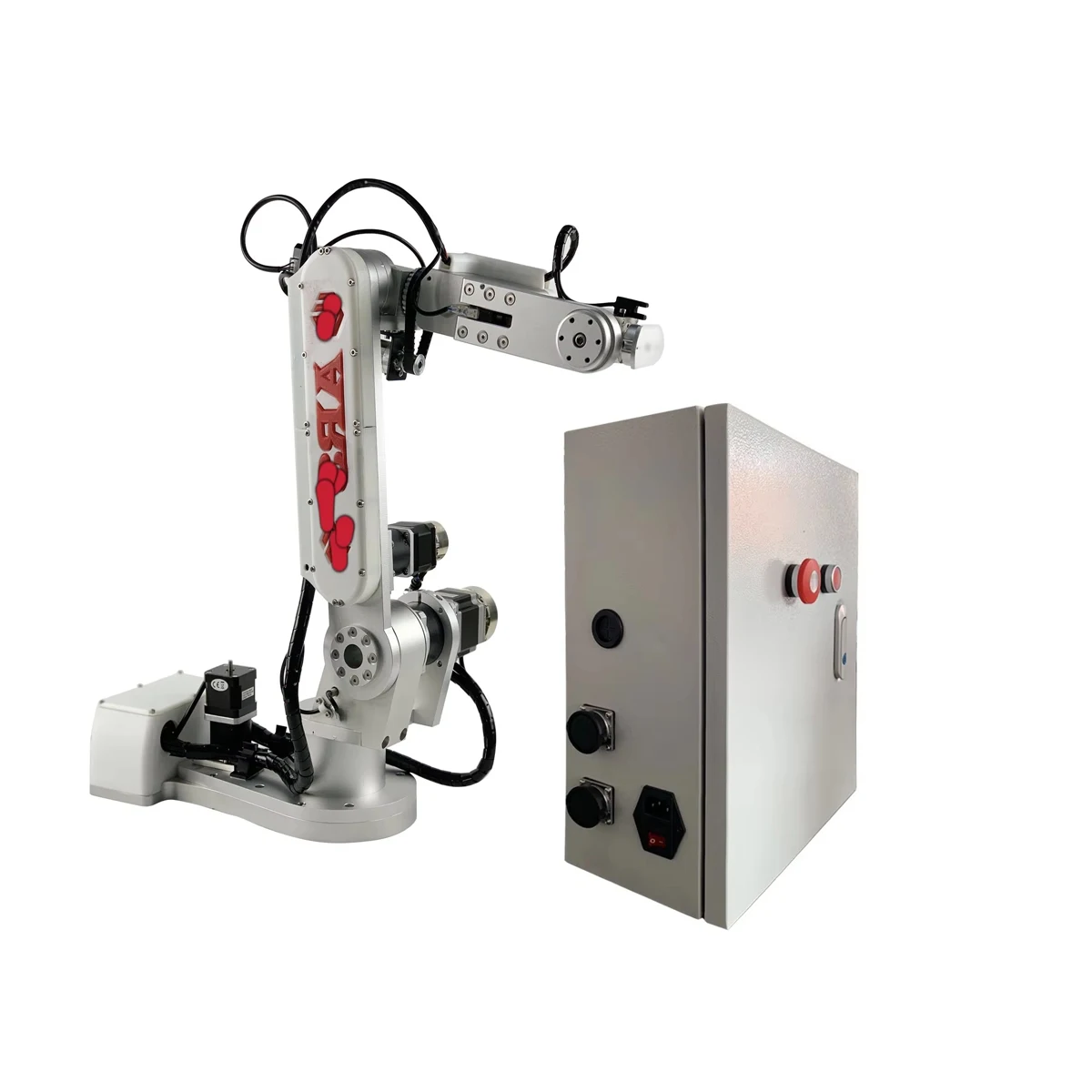

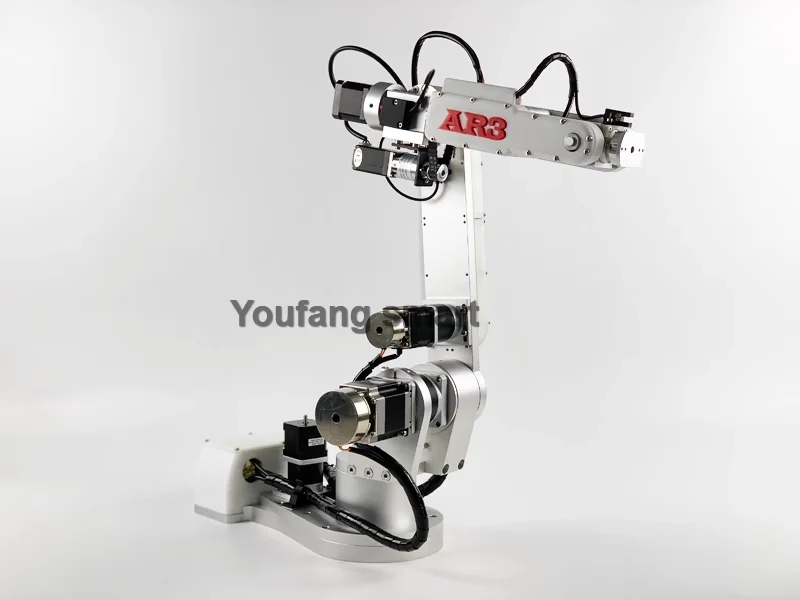

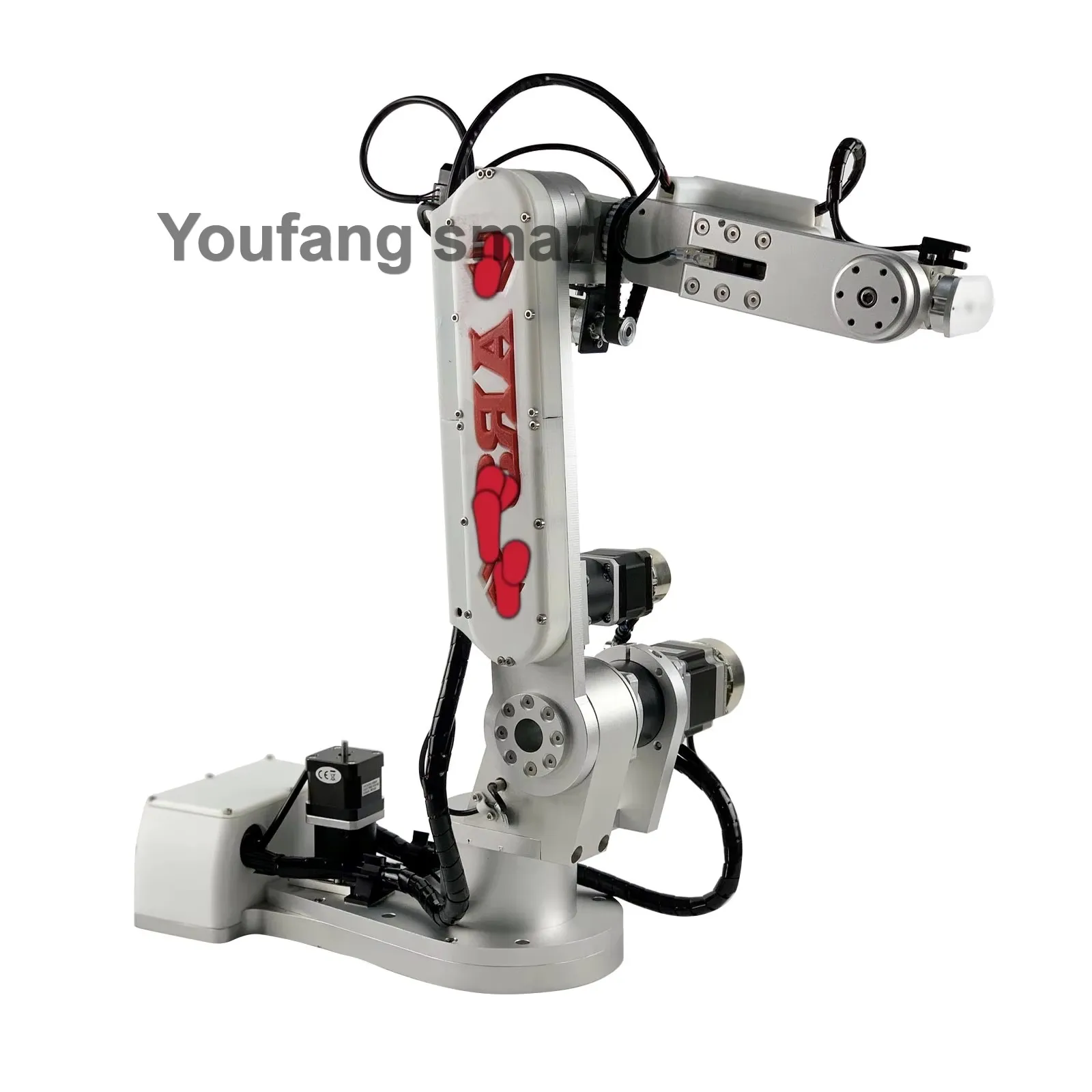

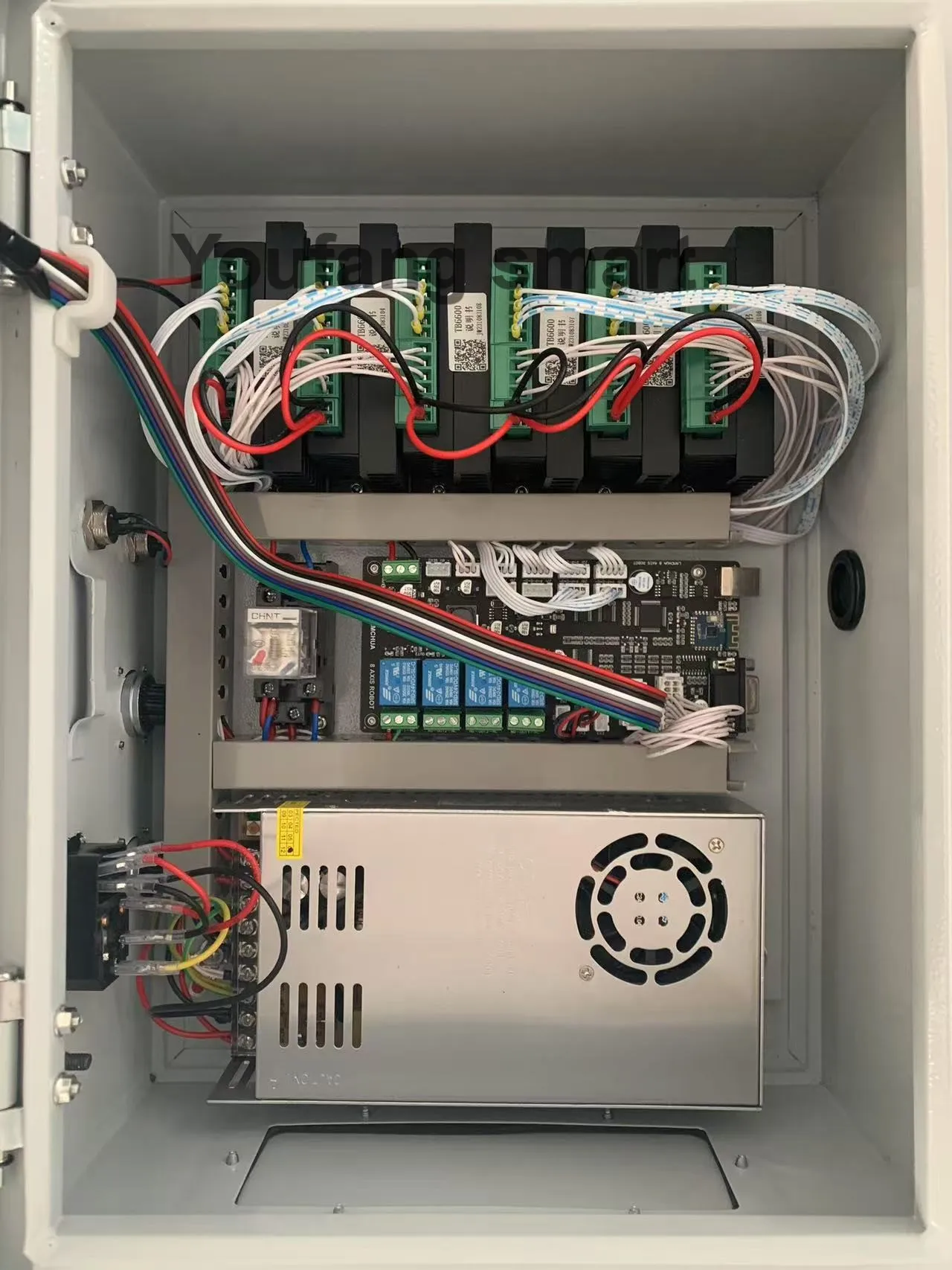

This version boasts a robot arm and Controller box.

AR3 Advantages:
– Highly cost-effective

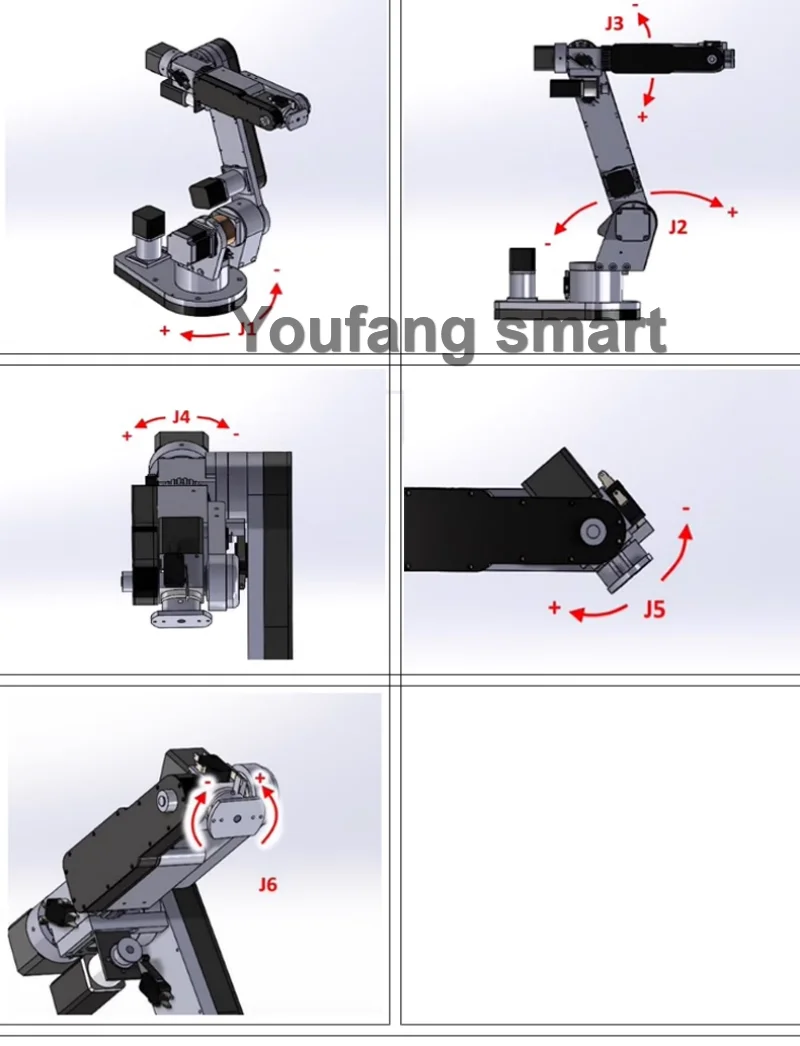

– 6DOF robot arm
– Support open-source control scheme

AR3 Specifications:

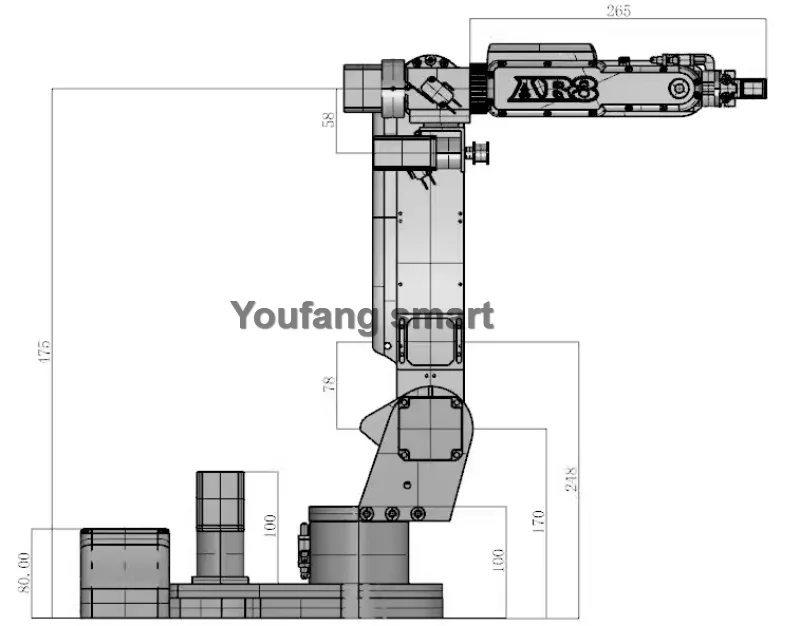

– Arm span 63cm/24.8"
– Load 2kg/4.4 lbs
– Repeatability 0.3mm
– Total weight of robot arm 18kg/39.68 lbs

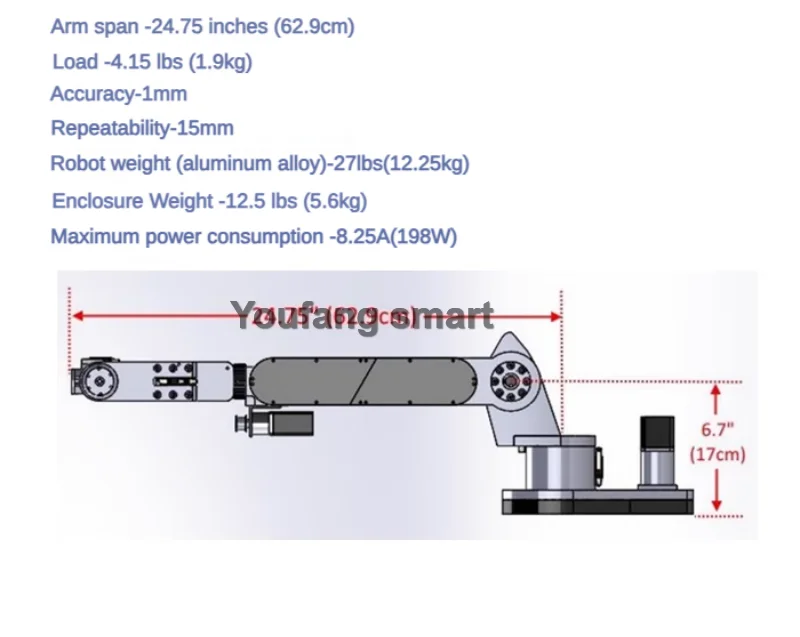

AR4 Specifications:
– Arm length: 24.75 inches (62.9cm)
– Load capacity: 4.2 lbs (1.9kg)
– Global accuracy: 1mm
– Repeatability: 2mm
– Robot weight (aluminum): 27lbs (12.25kg)
– Shell weight: 12.3lbs (5.6kg)
– Maximum power consumption: 8.25A (198W)

AR3 FAQ:
Q1: What motors are used?

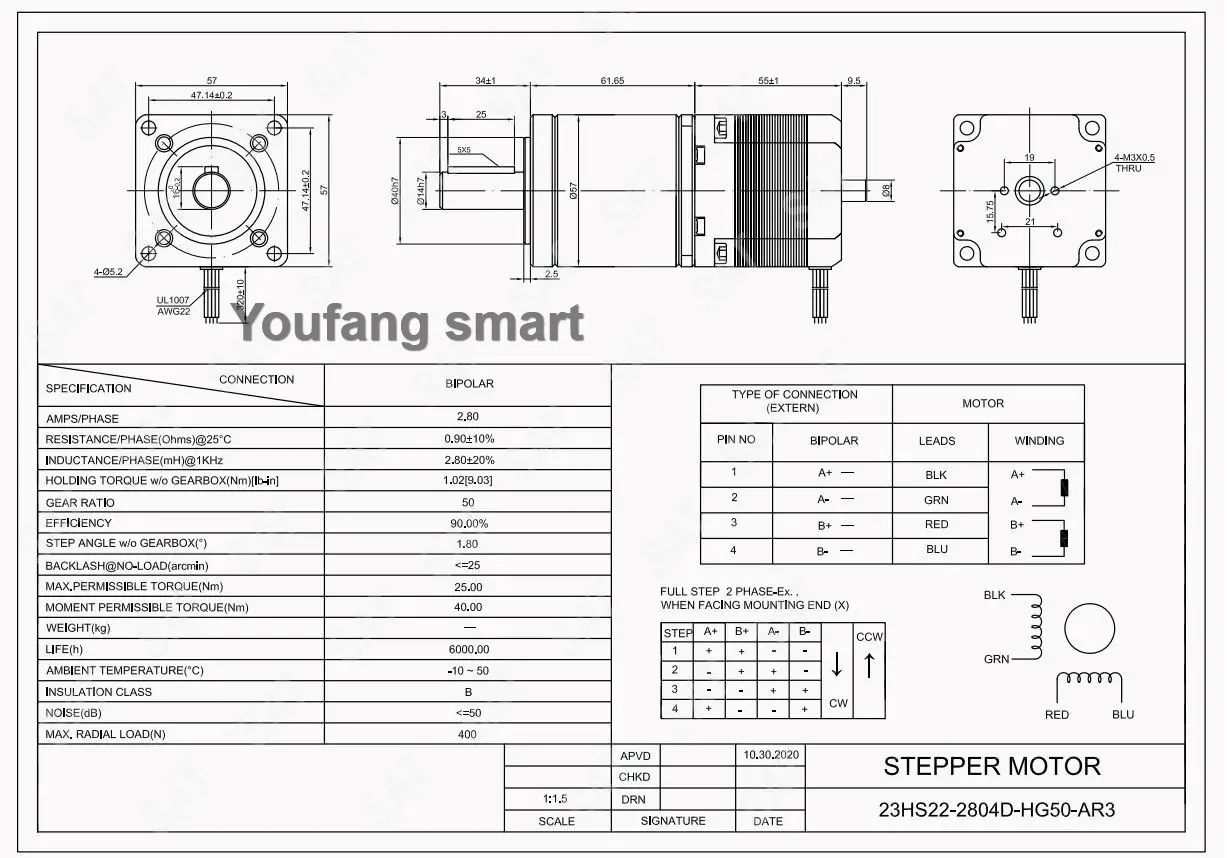

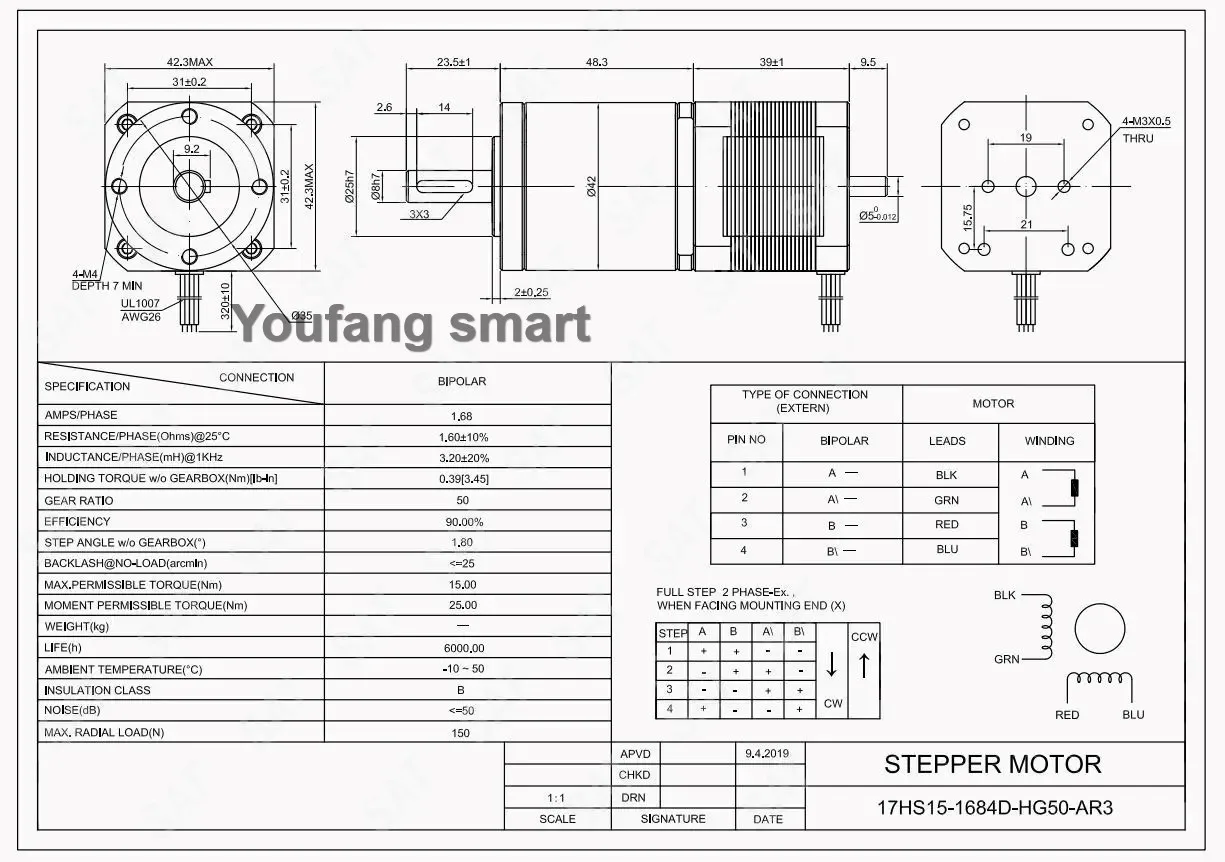

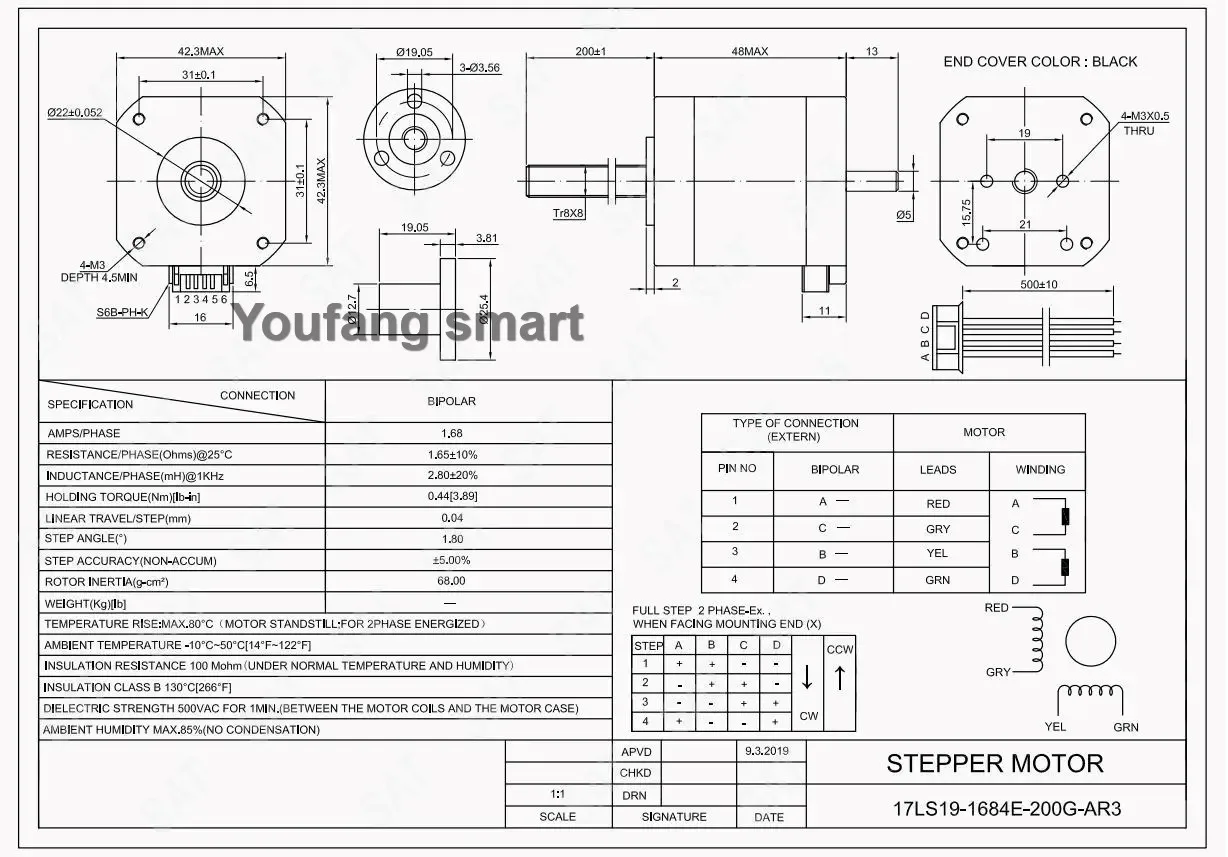

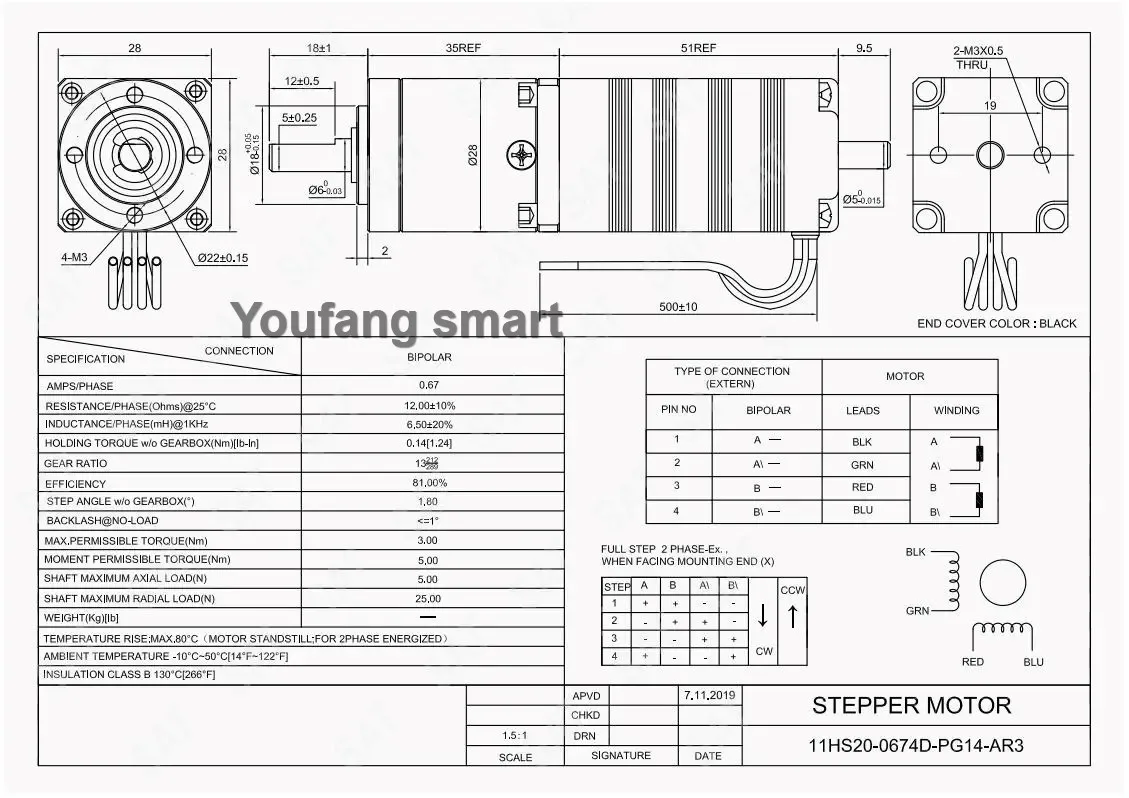

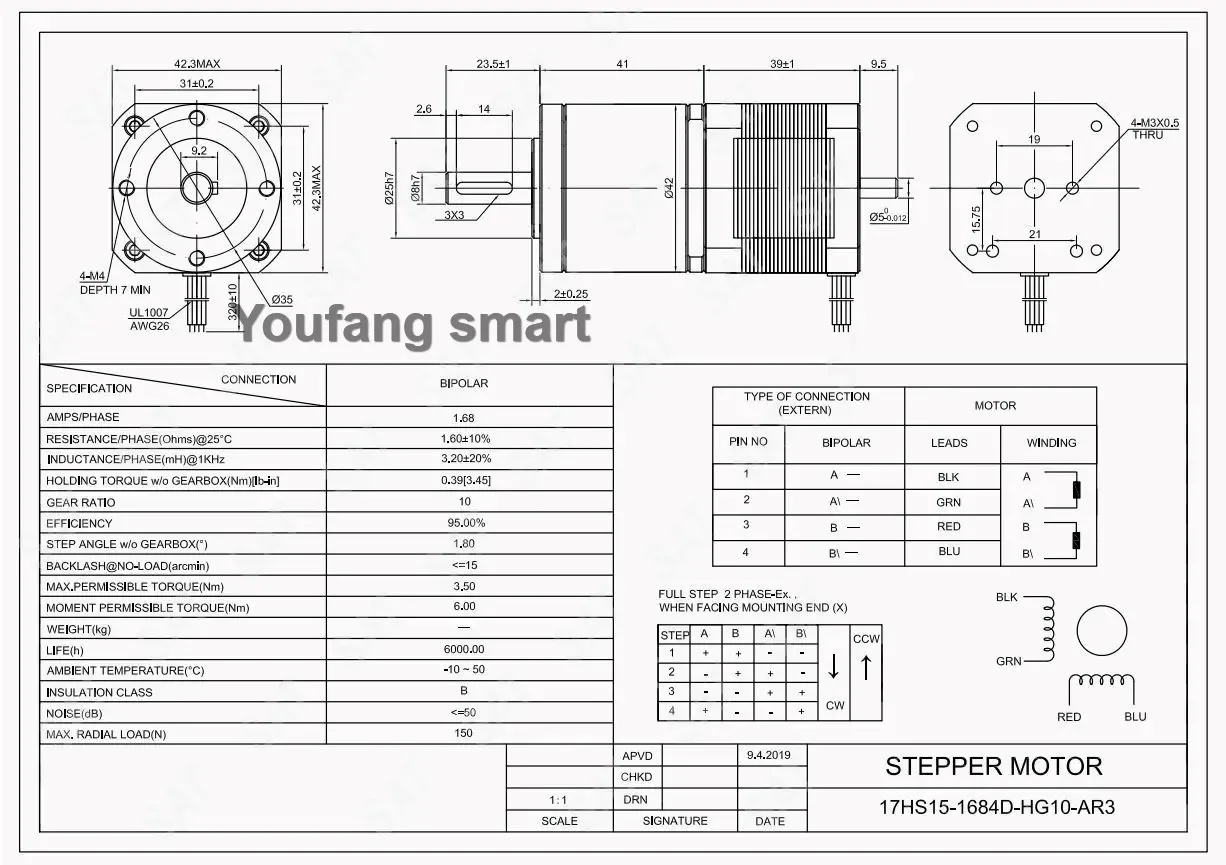

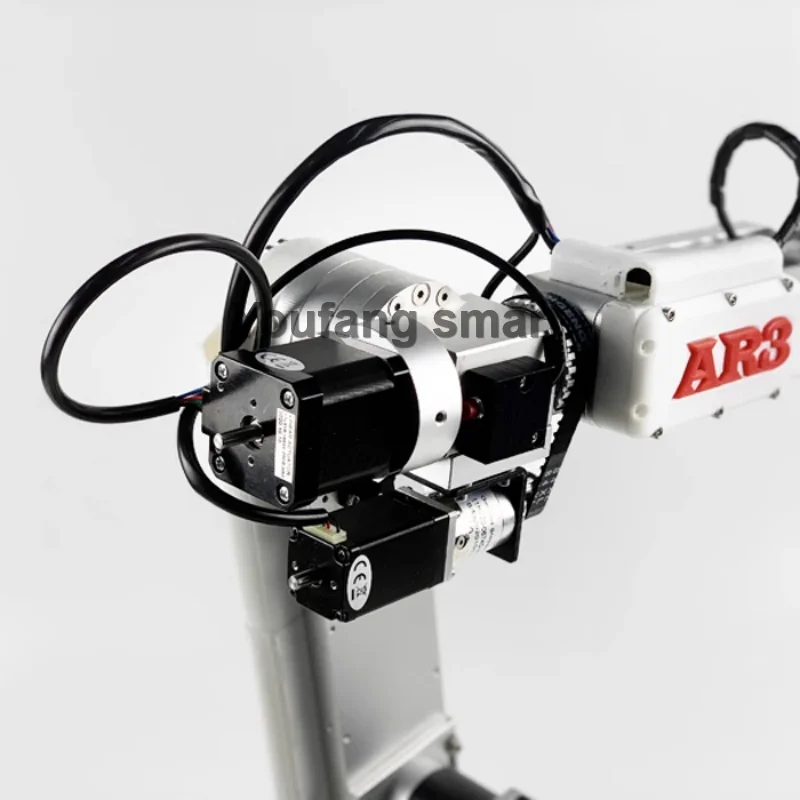

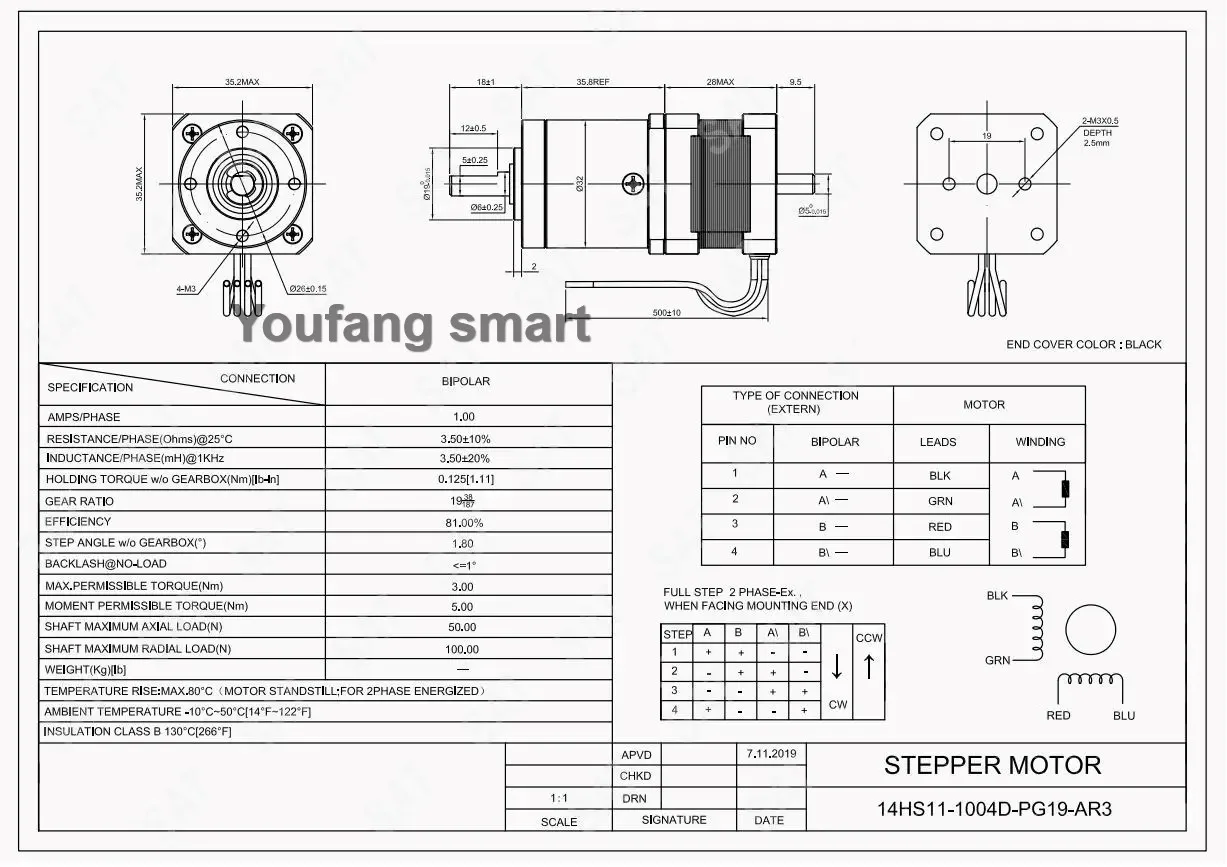

A1: Open-loop stepper motors. One 28 planetary gear motor, one 35 planetary gear motor, two 42 planetary gear motor, one 42 screw motors, and one 57 planetary gear motor. Brakes are installed at the motors of the 2nd axis and 3rd axis to prevent the robot arm from smashing down after a power failure.

Q2: Encoder part?
A2: All motors are dual-axis motors. Encoders can be modified by yourselves. Our company does not provide technical support for the modified parts. Please study the matching with the software by yourself.

Q3: What language does the control system code use?
A3: For Python.

Q4: Does it support secondary development?
A4: Support secondary development, providing control board schematic diagram, host computer, source code (not provide secondary development technical guidance, please research by yourself)

Q5: How to control?
A5: Through the computer host computer, connect the robotic arm control box for control. Can not be used offline. You can use a tablet for Win 7 with USB sockets.

Q6: Does it support the seventh axis and use it with the guide rail?
A6: Support, the software has this function, and the control board also supports it. You need to connect the corresponding drive and motor by yourselves, without connecting limit switches. The software can set the specified position of the guide rail to zero.

Q7: How about the speed?
A7: The running speed is limited by the running action. Due to the product’s cost-effectiveness, please do not compare with high-end robot arms

Q8: What kind of limit switch is used?

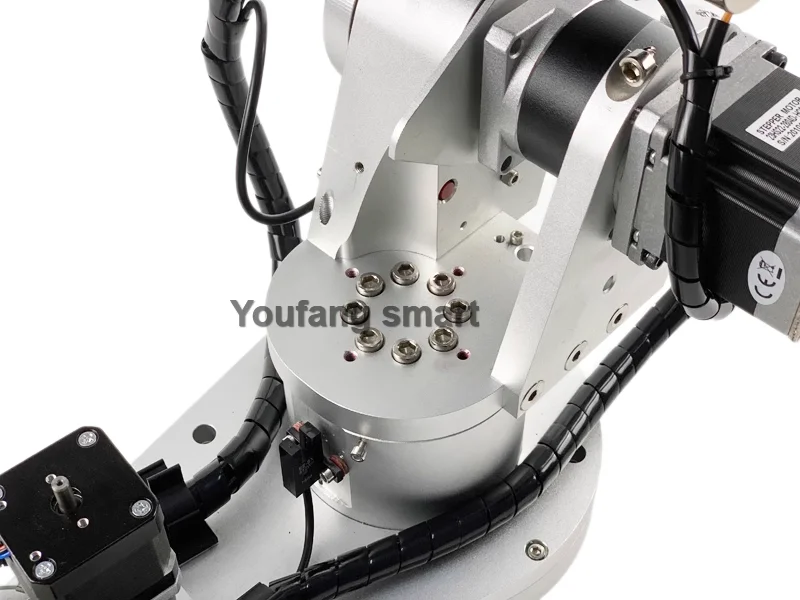

A8: 5 photoelectric limit switches and 1 mechanical limit switch.

Note:
– It is assembled and use directly. You do not to assemble !

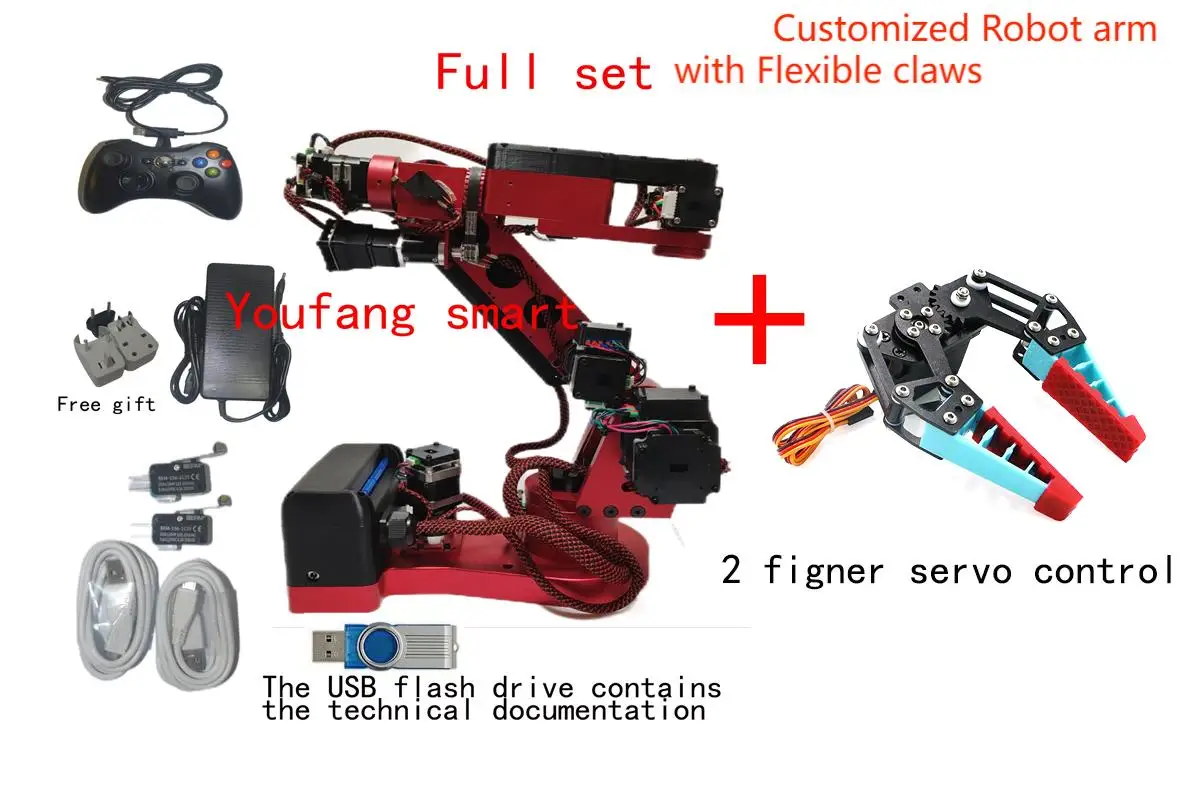

Package Included:

1. Without cootroller: 1 set Assembled Robotic Arm

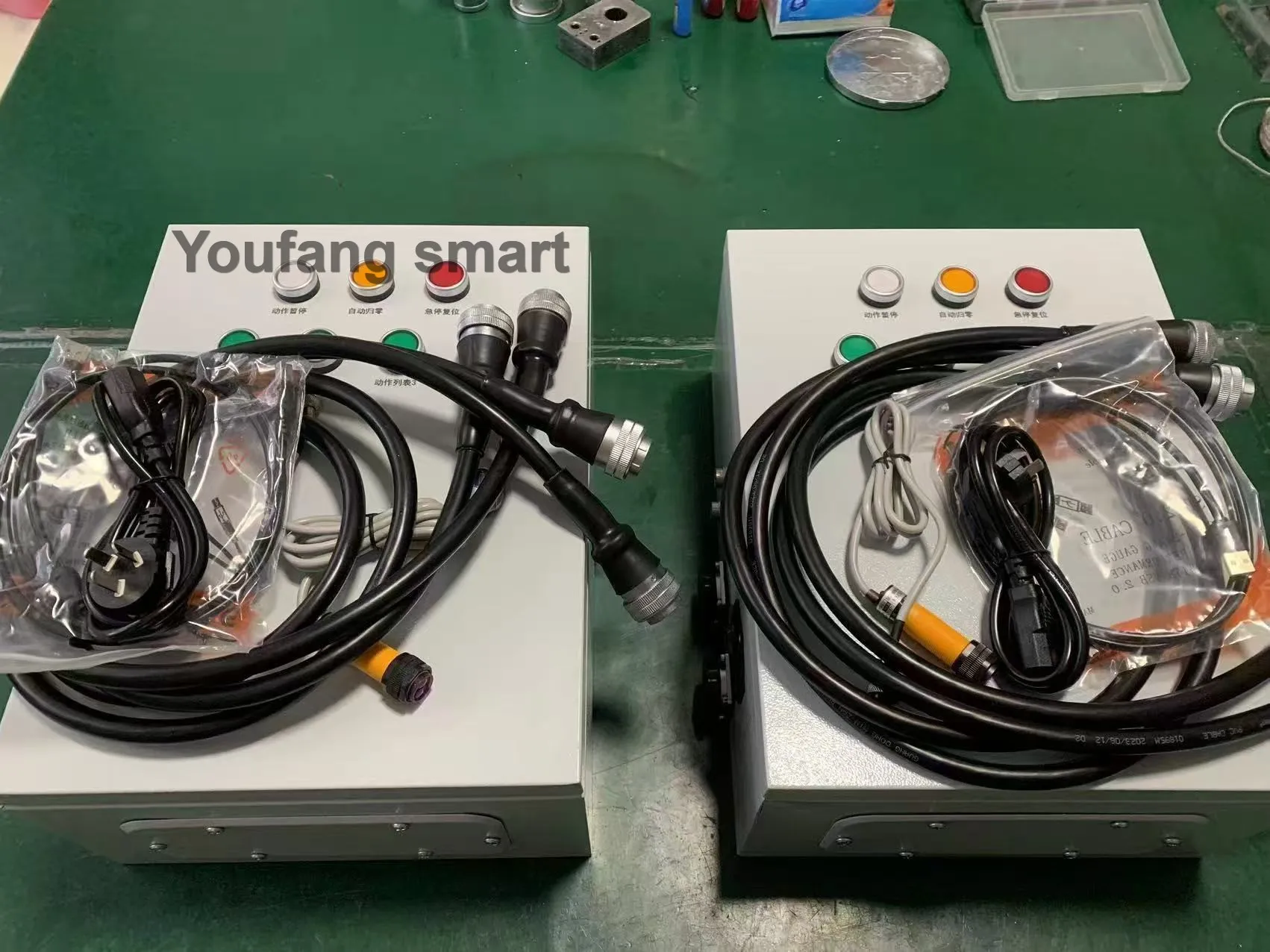

2. AR4 Full set: 1 x Assembled Robotic Arm + 1 set Controller + Power adapters（plugs for all countries for free）

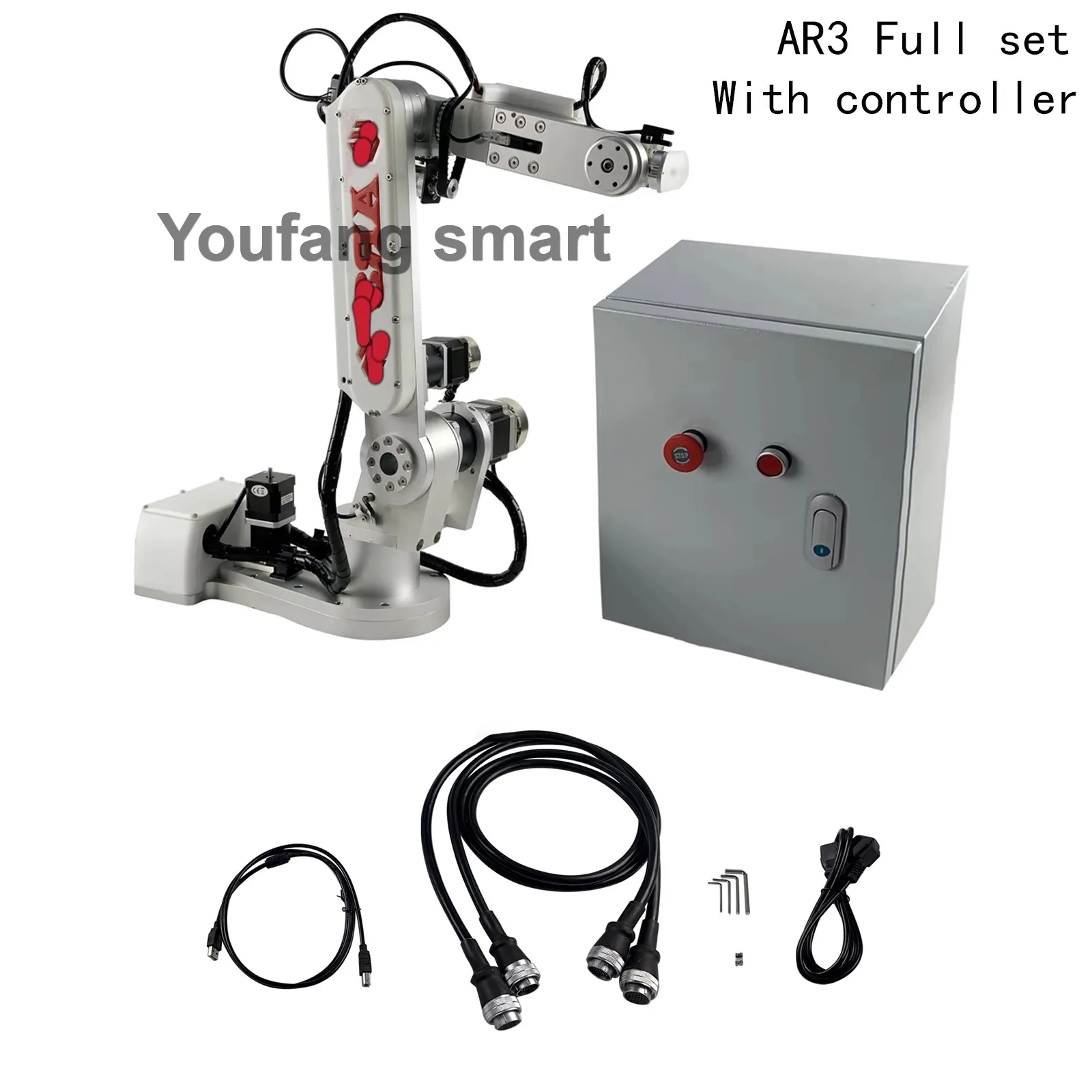

3. AR3 Full set: 1 x Assembled Robotic Arm + 1 set Controller + Power adapters（plugs for all countries for free）

Note:
– It is assembled and use directly. You do not to assemble !

Technical documents as follow, the most complete development and design, you deserve to own this engineering project, we do technology first, service first, not just sell goods.

If you need this manual of Robotic arm routines and development documentation, such as open source code, please contact us and leave your email.
